Monday, October 26, 2009

Episode 002 - Audio Podcast on Tater Bin!

Welcome Everyone,
This is just a Small under 5 Minute Audio Podcast, giving you a brief Detail about the Tater Bin that's in my Future Project to build for a Friend of mine. Just Small Details, Sorry about no Visuals just yet, as soon I get out to my Shop, I'll be taking some Pictures and probably doing a little Audio Podcast along with the Pictures to show my progress work. So if you are interested in tagging along with me on my journey you are more then welcome to do so, I hope that You will shower me with comments, tips and Hints that might help me out in my journey.

Saturday, October 24, 2009

Hand v. Power Tool Showdown: Watch it Live Online Nov. 12 - Fine Woodworking

Hand v. Power Tool Showdown: Watch it Live Online Nov. 12 - Fine Woodworking

Posted using ShareThis

Wednesday, October 21, 2009

Woodworking Tip of The Week - Simple Flush Trim Fence

The easiest way to trim edging applied to a plywood panel is to use a flush-trim bit in the router. With a hand-held router, this can be an awkward and tricky operation. Doing the job on the router table is a much better option.

The only catch is that you still need a way to support and steady the panel as you pass it across the bit standing on edge. My answer to this challenge falls into the quick and simple category.

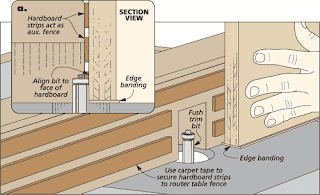

As shown in the drawings, I make a flush-trim fence by temporarily attaching several strips of hardboard to the router table fence with carpet tape. The bit is then aligned with the surface of the hardboard strips. This arrangement provides plenty of support as well as the clearance needed to trim the edging flush to the panel.

Wednesday, October 7, 2009


Hello everyone.

I'd like to apologize for the Infrequent Post of the Woodworking Tip of The Week. I have been experiencing some Computer Problems on my Laptop, which I have just worked out earlier this week.

I had to reformat my Hard Drive and Reinstall Windows Vista and all the Programs on my computer, I was experiencing Lock ups, Internet Delays and some other things, I've tried just about everything to fix them with some programs tried fixing with the Restore disk to fix errors but nothing.

So I had to Result back to about a 4 hr process with formatting, copying and installing. Quite a process, but had to be done.

Anyway, I should have the Tips on time every Tuesday now that my computer is back up and running right again.


Woodworking Tip of The Week - Adjustable Taper Jig

I recently needed to cut some tapered pieces for a project and didn’t want to invest in a manufactured jig. So I built the simple jig you see in the photo below.

It doesn’t take much material to build the jig. You probably have just about everything you’ll need lying around your shop.
Best of all, it’s accurate and can accommodate a wide variety of workpiece sizes. It also works great for ripping a straight edge on rough lumber.
The base of the jig is a piece of ¾″ plywood with three long slots used to attach an adjustable fence. Each slot is recessed on the bottom so the head of a carriage bolt sits out of the way (see detail A).
An adjustable ½″ plywood fence sits on top of the base. It has slots to match the slots in the base for adjusting the angle of the taper. And four holes in the fence accept ¼″ carriage bolts for the hold-downs.

I made the four hold-downs from 1″-thick hardwood (see detail B). A slot at the top allows you to quickly position and then tighten them down with a wing nut.
To use the taper jig, adjust the fence to the desired taper and lock it in place. Then swing the hold-downs over the workpiece and tighten the wing nuts. Finally, set the rip fence of the table saw so the blade lines up with the edge of the jig. Then simply push the sled along the fence. That’s all it takes to cut perfect tapers everytime.
